Timing Chain Setup — Where One Tooth Can Kill an Engine

This isn’t just a chain — it’s the heartbeat of the engine.

In a DOHC setup like this, the timing chain keeps the crankshaft and camshafts perfectly synchronized. Miss the timing by even one tooth, and you can end up with rough idle, loss of power… or catastrophic engine damage.

🔧 What You’re Looking At:

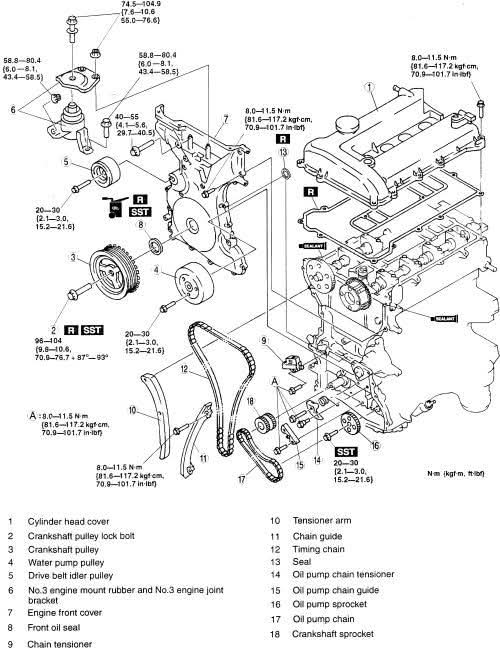

Timing chain driving both camshafts from the crank sprocket

Tensioner arm and guides controlling chain slack

Front oil seal and cover protecting the entire system

Precision torque specs measured down to the Newton meter

⚠️ Why Timing Jobs Demand Precision Over-tighten bolts? You risk cracking components.
Under-tighten them? Vibration can destroy the setup over time.

That’s why experienced techs always: ✔️ Align every timing mark perfectly
✔️ Set chain tension correctly
✔️ Rotate the engine by hand twice before startup
✔️ Double-check torque specs before sealing the cover

🛠️ Chain vs Belt Debate Timing chains usually last longer than belts, but when they fail, repairs can get expensive fast. Proper maintenance and oil changes are everything.

💬 Mechanics & gearheads — what do you trust more for long-term reliability: timing chains or timing belts?
